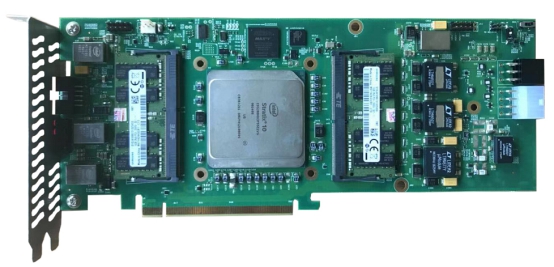

Stratix10 加速卡
發(fā)布時間:2020-11-16

FPGA

· Intel Stratix 10 GX FPGA(1SG280HH3F55E2VG)

FPGA Configuration

· JTAG header for FPGA programming

· Avalon-ST (AVST x16) configuration via MAX V CPLD and CFI flash memory

Memory

· 128MB FLASH

· 2 independent DDR4 SODIMM sockets with ECC, up to 32 GB 2666MHz for each socket

o PCI Express Gen3 x16 edge connector (includes PCIe drivers)

Communication and Expansion

· PCI Express Gen3 x16 edge connector (includes PCIe drivers)

· 2x5 Timing expansion header

Others

· General user input / output:

o 4 LEDs

o 2 push-buttons

o 2 slide switches

· On-Board Clock

o 50MHz Oscillator

o Programmable Clock Generator

· System Monitor and Control

o Temperature sensor

o Fan control

· Power

o PCI Express 2x3 power connector for 12V DC Input

o PCI Express 2x4 power connector for 12V DC Input

o PCI Express edge connector power

· Mechanical Specification

o PCI Express standard height and 3/4-length

Supported Memory Modules for Sockets

· DDR4-2666/2400 for FPGA Core Speed 1/2 FPGA

JZ280T Board

Board Size

· Board Size: 111.15 X 26.61 mm
